FILTER CELLS
zig zag folded

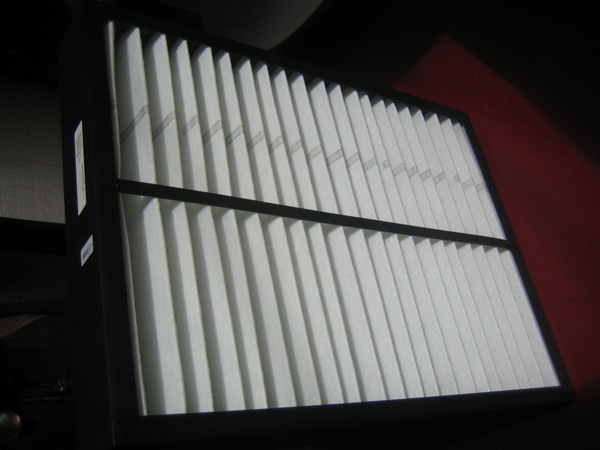

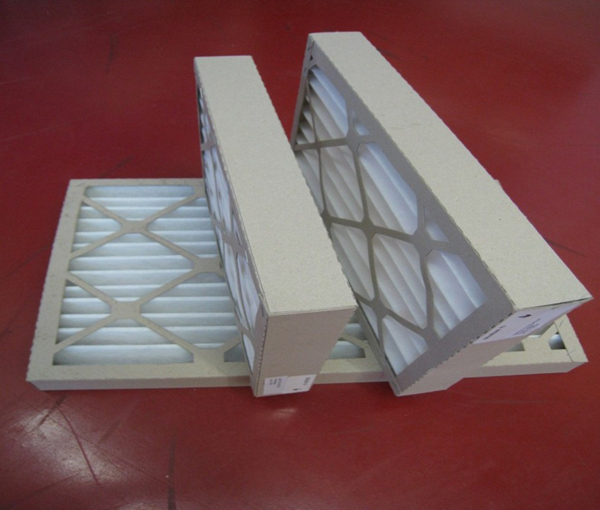

The synthetic filter medium filtex® ZPLEAT consists of surface-treated deep-fleece with a frame grid at least on air outlet side. To achieve an extrem big filter surface the filter medium is folded zigzag. The filter is installed close in a stable cell frame of special cardboard material.

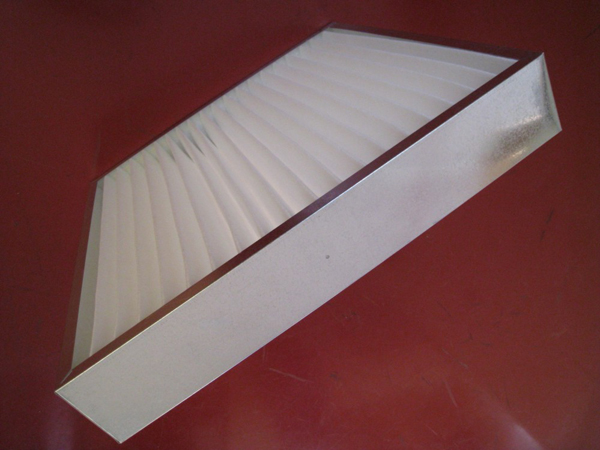

The frames are made of galvanised steel, plastic or special cardboard. Available in different thicknesses. The most often used filter classes reach from G3-F7.
Application range:
As a prefilter in all kinds of air handling units or exhaust air machines. As filter elements in special dust removal equipments, dust collection units, etc. Insertion in all kinds of air conditioning-units.
Types - Filter classes - Medium:
Characteristics:
Filter medium filtex®ZPLEAT 100% Synthetic "high flow"
High filter efficiency
Frame materials metal, plastic, special cardboard
Frame thicknesses 50/100, others on request
All standard dimensions, special dimensions on request
Technichal data see TECHDOC or on request
As a prefilter in all kinds of air handling units or exhaust air machines. As filter elements in special dust removal equipments, dust collection units, etc. Insertion in all kinds of air conditioning-units.
Types - Filter classes - Medium:
| FZP with cardboard frame | class G3-F7 | medium filtex ZPLEAT |
| FZMP with metal frame | class G3-F7 | medium filtex ZPLEAT |
| FZMB with metal frame | class G3-F5 | medium filtex ZBPLEAT |
| FZKP with plastic frame | class G3-F7 | medium filtex ZPLEAT |
Characteristics:
Filter medium filtex®ZPLEAT 100% Synthetic "high flow"
High filter efficiency
Frame materials metal, plastic, special cardboard
Frame thicknesses 50/100, others on request
All standard dimensions, special dimensions on request
Technichal data see TECHDOC or on request
